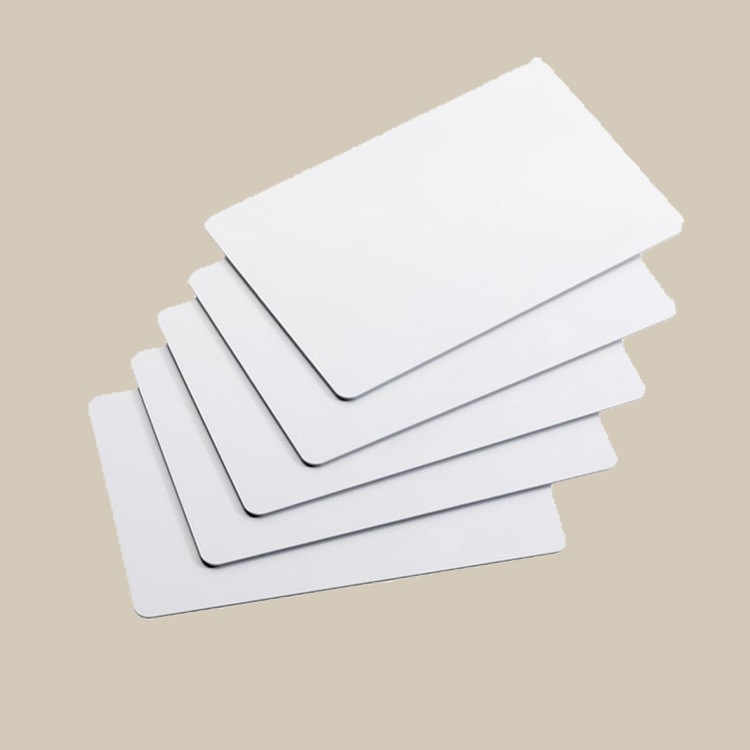

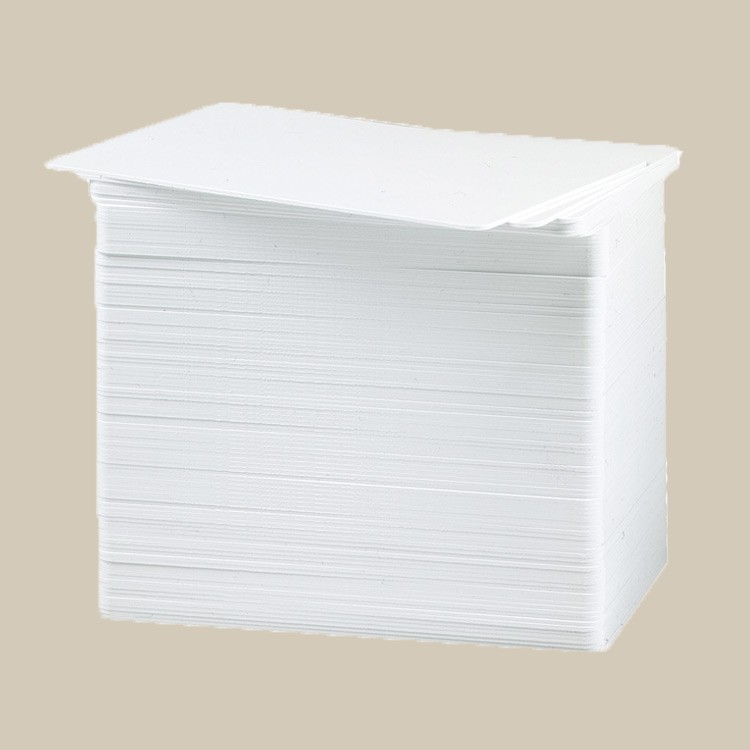

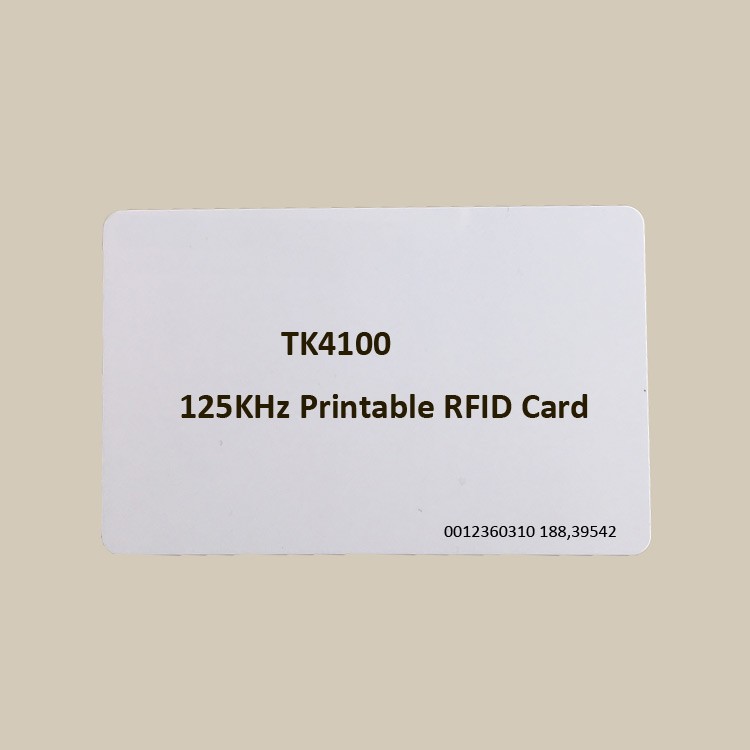

125Khz ISO Standard Proximity Card TK4100

Short Description:

125Khz ISO Standard Proximity Card s made by 100% new fresh PVC , PET or Eco-friendly material The card is laminated with layer protection for the purpose of high quality printing Card.We offer PVC cards embedded with various types of RFID smart chips cater for wide range of application.





Details

Feature:

Material: PVC

Frequency:125Khz

Chip: TK4100

Size:ISO 85.5mm x 54mm x 0.84mm (=credit card format), other thicknesses, sizes and shapes available

Craft: Blank card or UID pre-printed

Surface: Glossy with Laminated film

IP SEALING: IP67

Printer:Can be printed directly by any plastic ID Card Printer on both side such as Datacard, Fargo, Evolis etc


More Chip available:

NXP MIFARE Classic®  EV1 Classic 1K S50- 4 Byte

• NXP MIFARE Classic®  EV1 Classic 1K S50- 7 Byte

NXP MIFARE Classic®  EV1 Classic 4K S70-4Byte

• NXP MIFARE Ultralight®  EV1 48 Bytes
• NXP MIFARE Ultralight®  C 192 bytes
• NXP MIFARE® DesFire® EV3 2K, 4K, 8K
• NXP MIFARE® Plus SE/X/S 1K, 2K,4K
• NXP MIFARE® Mini (S20)  640 bits
• Fudan  FM1108/F32/FM1208 1K or 4K,8K
• NXP ICODE® 2, SLI-X, SLI-L, SLI-S 1k-2K
• ST Microelectronics SRI512 512 bits
• Texas Instruments TI2048/TI256 256 bits-2048 bits
• LEGIC MIM256  256 Bytes

LF - 125KHZ
• TK4100/EM4102/EM4200  64 - 1024 Bytes
EM Microelectronics EM4305/EM4450
• ATMEL T5577,LEGIC MIM256 330 bits, 256 Bytes
• NXP HITAG 1, HITAG 2, HITAG S 256,  HITAG S 2048 256 – 2048 Bytes

UHF - 860-960MHZ
• ISO 18000-6C (EPC GEN 2) NXP Ucode 8/9,Alien H4/H9,Monza R6 etc

NFC CHIP
• NXP NTAG 213/215/216 144 /504/888 Bytes

CONTACT IC CHIP
• Fudan FM4442, FM4428 / SLE5542, SLE5528 256 - 1024 Bytes

ATMEL
• AT24C01, AT24C02, AT24C04, AT24C08,AT24C16, AT24C64 1K bits - 512K bits
• AT24C128, AT24C256, AT24C512, AT93C46A, AT88SC102
• AT88SC153, AT88SC1608, AT880204C, AT880404C, AT880808C
• AT88SC1616C, AT88SC25616C,AT88SC12816C
